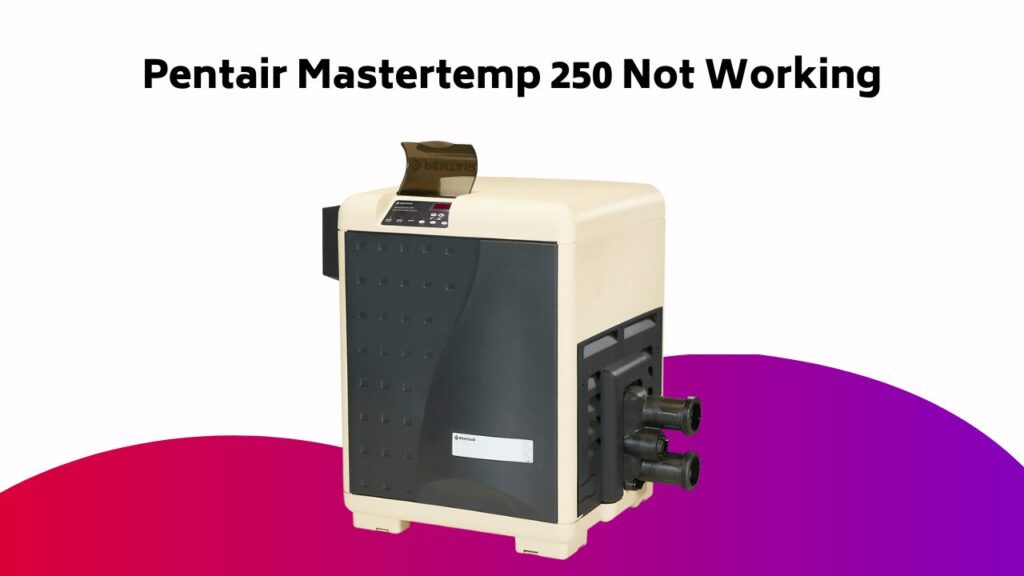

As you troubleshoot your Pentair Mastertemp 250 pool heater, you’ll likely encounter a range of issues that can leave your pool water chilly. From error codes flashing on the control panel to mysterious electrical problems, it’s essential to tackle each potential cause methodically. Start by diagnosing those error codes and checking for electrical issues – but be prepared to dig deeper, as rodent damage, vacuum hose problems, and thermal regulator issues may also be lurking beneath the surface.
Contents
- Errors on the Heater Control Panel
- Troubleshooting Electrical Issues
- Rodent Damage and Prevention
- Inspecting and Replacing Vacuum Hoses
- Thermal Regulator and Thermistor Issues
- ERR PSPressure Switch and High Limit Switch Errors
- Interlock Sensors and Switches Troubleshooting
- Power Supply and Circuit Board Issues
- Burner and Heat Exchanger Troubleshooting
- Frequently Asked Questions
- Conclusion
Errors on the Heater Control Panel
When the Pentair MasterTemp 250 heater control panel displays error codes “888, 128, and then rX” during normal boot-up, where X is the software revision number, it may indicate an issue with the heater’s control panel.
Corrosion on the wire connections or a bad circuit board can cause this issue. Check the membrane pad on the control panel, just a clear window, and guarantee it doesn’t affect the display.
Press the pool on button and check the fuse to troubleshoot the issue. Verify the power supply to the heater is functioning correctly and not affecting the display on the control panel.
Troubleshooting Electrical Issues
Several electrical issues can prevent your Pentair MasterTemp 250 from functioning properly.
Check the power cord for damage or wear. Verify that it’s securely plugged into the outlet. Guarantee the voltage at the outlet matches the heater’s rating. Consult your electrical panel’s documentation if you’re unsure.
If the heater still doesn’t turn on, test the GFCI outlet. Your Pentair MasterTemp 250 pool heater may not be receiving power due to a tripped GFCI breaker.
Rodent Damage and Prevention
Rodent infestation is a common issue that can cause significant damage to your Pentair MasterTemp 250 pool heater, often resulting in costly repair or even complete system failure.
You can detect rodent infestation by a strong smell or visible signs of damage, such as chewed wires or hoses.
To prevent future infestations, block rodent entry points around the heater with mesh wire and secure it with small screws or steel wool.
Regular inspection and maintenance of the pool heater can help prevent rodent damage and verify the system operates safely and efficiently.
Inspecting and Replacing Vacuum Hoses
When inspecting your Pentair Mastertemp 250’s vacuum hoses, you’ll need to identify damaged or worn-out hoses that can cause system malfunctions.
Look for signs of cracks, kinks, or corrosion, which can lead to air leaks and reduced pump performance.
If you find any damage, you’ll need to replace the hose following a specific procedure to guarantee a secure and watertight connection.
Damaged Hose Identification
You need to inspect your Mastertemp 250’s vacuum hoses regularly to identify damaged hoses.
Check the hoses for signs of wear, such as cracks, cuts, or abrasion on the hose surface. Inspect the hose connections and fittings for looseness or damage.
Check the hose for rust, corrosion, or mineral buildup that may cause hose failure. If you find any damage, replace the hose immediately to prevent system failure or accident.
A damaged hose can cause air leaks, leading to pool water quality issues or equipment damage.
Hose Replacement Procedure
Now that you’ve identified damaged hoses, it’s time to replace them to guarantee your Mastertemp 250 system operates efficiently and safely. Make sure to disconnect the power supply before starting the replacement process. Remove the damaged hoses and dispose of them properly. Install new vacuum hoses, certifying they’re securely connected to the Pentair Mastertemp 250 system.
| Step | Action | Purpose |
|---|---|---|
| 1 | Shut off power | Prevent electrical shock during replacement |
| 2 | Remove damaged hoses | Prevent further damage to the system |
| 3 | Install new hoses | Verify efficient and safe system operation after power cycle |
After replacing the hoses, perform a power cycle to test the system.
Thermal Regulator and Thermistor Issues
You’re likely familiar with the Pentair Mastertemp 250’s temperature control system, but do you know how the thermal regulator and thermistor work together to maintain a stable temperature?
These two critical components guarantee the system operates within a safe temperature range. If the thermal regulator is faulty, the thermistor may not provide accurate readings.
Check the thermal regulator’s resistance value and thermistor output to diagnose issues. Consult the installation manual for wiring diagrams and troubleshooting guides.
ERR PSPressure Switch and High Limit Switch Errors
When troubleshooting ERR PSPressure Switch and High Limit Switch errors on your Pentair Mastertemp 250, you’ll need to check for corrosion on the switches,
verify the display isn’t affected by the error, and cycle the power to reset the switches.
Corrosion can cause faulty readings, so inspecting the switches is vital.
Corrosion Check**: Check for Corrosion on the Pressure Switch and High Limit Switch
As you troubleshoot the Pentair Mastertemp 250, corrosion on the pressure switch and high limit switch becomes a prime suspect, especially when ERR PSPressure Switch and High Limit Switch errors are present.
Inspect both switches for signs of corrosion, such as rust, mineral buildup, or green residue. Check the wire connections for corrosion, as corroded wires can prevent the switches from functioning properly.
Clean the switches with a soft-bristled brush and a mixture of baking soda and water to remove corrosion and mineral deposits. If corrosion is severe, replace the switches to resolve the issue.
Display Error**: Verify the Display Is Not Affected by the Error
To diagnose the display error and troubleshoot the issue, verifying that the display isn’t affected by the ERR PSPressure Switch and High Limit Switch errors is vital.
Check the led lights on the back of the control circuit board for error codes and consult the list of lights on the back of the control panel to diagnose the issue.
Make certain the display shows “888, 128, and then rX” during normal boot-up, where X is the software revision number. If the display doesn’t match this, it may indicate a display error, potentially caused by corrosion on wire connections or a bad circuit board.
If the display error persists, split the troubleshooting process into separate steps. First, check the led lights on the back of the control circuit board for error codes. Then, consult the list of lights on the back of the control panel to diagnose the issue.
Power Cycle**: Cycle the Power to the Heater to Reset the Switches
You’ve tried everything to troubleshoot the ERR PSPressure Switch and High Limit Switch errors, but the problem persists.
It’s time to get radical. Power cycle the heater to reset the switches. Yeah, it’s a long shot, but it’s worth a shot.
Flip the service heater light switch, then flip it back off. This will reset the pressure switch and high limit switch, which should clear the error.
If the problem persists, it’s time to call in a professional.
Interlock Sensors and Switches Troubleshooting
When troubleshooting interlock sensors and switches in your Pentair MasterTemp 250 heater, it’s vital to understand the underlying mechanisms that can cause malfunctions.
This can be prevented by verifying the electrical connections are secure and not damaged, verifying the proper function of the interlock sensors and switches, and applying the correct voltage to prevent overheating or electrical shock.
| Step | Description |
|---|---|
| 1 | Check the electrical connections between the interlock sensors and switches to verify they’re secure and not damaged. |
| 2 | Verify the proper function of the interlock sensors and switches by consulting the Pentair MasterTemp Heaters reference guide. |
| 3 | Verify the correct voltage is applied to the interlock sensors and switches to prevent overheating or electrical shock. |
Power Supply and Circuit Board Issues
Power supply and circuit board issues in your Pentair MasterTemp 250 heater can manifest in various ways, including failure to power up, irregular voltage readings, and blown fuses.
You’ll want to check the power cord connection and circuit breaker first if your unit won’t turn on. Verify all connections are secure and not damaged.
Next, inspect the circuit board for signs of physical damage or overheating. Look for blown fuses, tripped circuit breakers, or burned components. If you find any issues, replace the faulty parts with new ones from Pentair or a suitable alternative.
Burner and Heat Exchanger Troubleshooting
The burner and heat exchanger are critical components in your Pentair MasterTemp 250 heater, and issues with these parts can significantly impact the overall performance of the unit. You may experience issues like reduced heating capacity, uneven water temperature, or even failure to heat your swimming pool water at all.
| Symptom | Possible Cause |
|---|---|
| Burner won’t light | Faulty igniter or gas supply issue |
| Heat exchanger leaking | Corrosion or damaged O-rings |
| Inconsistent water temperature | Incorrect heat exchanger installation |
| Burner making unusual noise | Dirty or clogged burner orifice |
| Low water flow alarm | Insufficient pool pump flow rate |
Review your installation and maintenance procedures to identify and address the root cause of the issue.
Frequently Asked Questions
Why Does My Pentair Heater Keep Turning Off?
When your heater keeps turning off, you’re likely dealing with power issues or a faulty thermostat. Check for corrosion on wire connections, a bad circuit board, or stray voltage, as these can cause your heater to shut down unexpectedly.
Why Is My Pool Heater Not Firing Up?
Like a firework that fizzles out, your pool heater’s failure to ignite leaves you in the dark. You’re not alone; igniter failure is a common culprit. Check your Pentair Mastertemp 250’s igniter for corrosion or blockages, ensuring a spark to get your heater firing up again.
How to Check Error Codes on Pentair Heater?
You’ll need to access the Pentair heater’s control panel to check error codes, which are typically displayed as a series of flashing lights or numerical codes. Consult the user manual for a code explanation, then use the error diagnosis process to identify and resolve the issue.
How Do I Know if My Stack Flue Sensor Is Bad?
Your stack flue sensor is like a canary in a coal mine – it warns you of potential dangers. If you notice symptoms like incorrect temperature readings, faulty ignition, or erratic burner behavior, it may be singing its swan song; consider sensor replacement to restore harmony.
Conclusion
You’ve successfully troubleshooted your Pentair Mastertemp 250 pool heater! Remember, regular maintenance is key to preventing issues. Did you know that a well-maintained pool heater can last up to 15 years or more? By following these steps, you’ll be swimming in warm waters in no time. Refer to your user manual for routine maintenance schedules and keep your heater running efficiently. Now, plunge back in and enjoy your pool!
