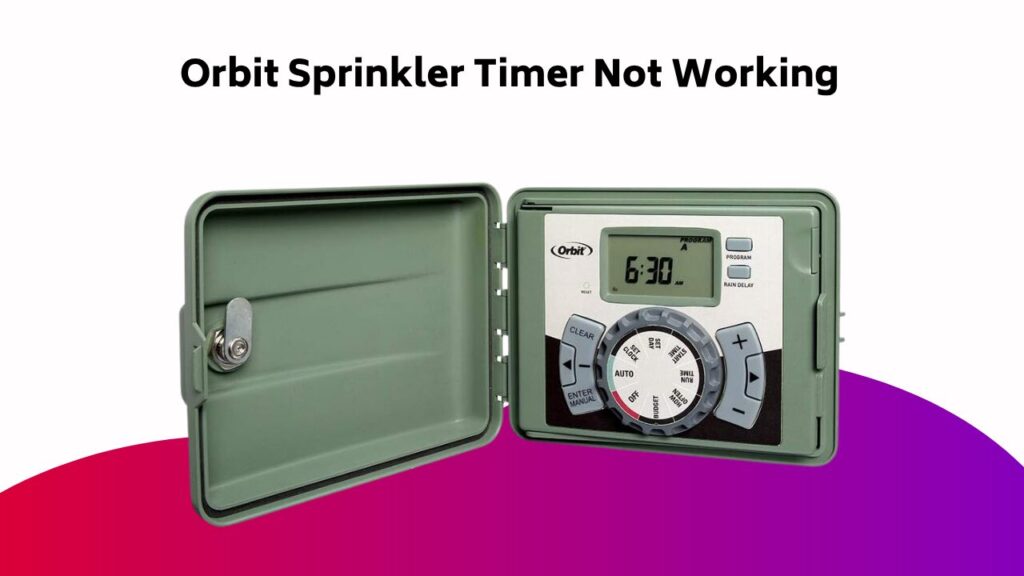

Did you know that a faulty Orbit sprinkler timer can be caused by something as simple as a loose wire connection? When troubleshooting, it’s essential to start with the basics. Begin by ensuring the valve box is properly installed and wired, and that the timer is receiving power and set correctly. If these initial checks don’t reveal the issue, you’ll need to plunge further into voltage checks, valve and solenoid components, and wiring inspections. What could be causing your Orbit timer to malfunction, and how can you get your sprinkler system up and running again?
Contents
Initial Troubleshooting Steps
When encountering issues with your Orbit sprinkler timer, take a step back and begin with the basics.
Check the valve box for proper installation and guarantee all wires are securely connected. Verify the timer is receiving power by checking the voltage at the outlet. A faulty outlet would greatly impact the timer’s performance.
Make sure the timer is set correctly, including the time, date, and program settings. If you’ve recently made changes, try reverting to the previous settings.
Voltage Checks for Proper Operation
When checking the voltage for proper operation, you’ll need to perform two key tests: one at the device and one at the valve.
At the device, you’ll insert your voltmeter into the common terminal and the station being manually run, looking for a reading of 24-30 volts AC.
Meanwhile, at the valve, you’ll attach the voltmeter prongs to the two wires coming off the valve, again seeking a reading of 24-30 volts AC.
Voltage at the Device
To troubleshoot the Orbit sprinkler timer, start by checking the voltage at the device, a crucial step in identifying potential issues.
Turn on the problematic station or run a manual cycle, ensuring the wires are inserted in the terminal. Use a voltmeter to measure the voltage by inserting one prong into the common terminal and the other into the station being manually run.
The reading should be 24-30 volts AC, indicating proper operation. Repeat this process for other affected stations to isolate the issue.
If the voltage reading is outside this range, it may indicate a problem with the device or wiring.
Voltage at the Valve
After verifying the voltage at the device, you’ll want to check the voltage at the valve to certify the signal is reaching the station.
Run a manual cycle on the timer and locate the valve box in the yard to identify the active station. Attach a voltmeter to the two wires coming off the valve and check for 24-30 volts AC.
This indicates the valve is receiving the electrical signal from the controller. If the voltage is outside this range, it may signal an issue with the controller, wiring, or power supply.
This valve diagnosis and wire inspection will help isolate the problem, ensuring proper electrical signals reach the valve.
Verifying Voltage Readings
You’ve confirmed the timer is sending the correct voltage; now it’s time to verify the voltage readings at the valve to guarantee proper operation.
Using a voltmeter, insert one prong into the common terminal and the other into the station being manually run. The reading should be 24-30 volts AC, indicating proper operation of the timer and valve.
Repeating this process for other affected stations can help isolate the issue. If voltage fluctuations or wiring issues are suspected, perform a voltage check at the valve box to rule out electrical connections problems.
Valve Troubleshooting and Replacement
When troubleshooting your Orbit sprinkler timer, you’ll need to verify that the valves are receiving the correct voltage signal.
If the valves aren’t functioning as expected, you’ll want to identify the symptoms of valve failure, such as inconsistent water pressure or complete failure to turn on. By checking the voltage and recognizing these symptoms, you’ll be able to diagnose and replace the solenoid if necessary.
Valve Voltage Check
To determine if the issue lies with the valve or the controller, it’s essential to perform a valve voltage check.
This vital step in valve diagnosis helps you identify the root cause of the problem, guaranteeing effective sprinkler maintenance and electrical safety.
When performing the check, attach the prongs of the voltmeter to the two wires coming off the valve and take a reading.
- The voltage reading should be 24-30 volts AC, indicating the signal is being sent from the controller.
- A reading within this range may indicate a defective valve, and you should consult the manufacturer’s manual for troubleshooting steps.
- Failure to reach the valve may indicate an issue with the controller or wiring.
- Verifying the voltage is vital to isolate the problem and guarantee proper valve replacement.
Valve Failure Symptoms
Valve failure symptoms can manifest in various ways, but a faulty valve is often the root cause of issues with your Orbit sprinkler timer.
You may notice water leaks around the valve box, valve rattles, or valve whistles when the valve is supposed to be closed. These symptoms indicate that the valve isn’t functioning correctly.
If you’ve checked the voltage and it’s within the 24-30 volts AC range, it’s likely the valve itself is defective. Consult your manufacturer’s manual for troubleshooting steps to isolate the issue and determine if replacement is necessary.
Solenoid Replacement
You’ve determined that the valve is defective and needs replacement.
Now, it’s time to focus on solenoid replacement. The solenoid design is a vital component of the valve, and faulty maintenance can lead to premature failure.
Before replacing the solenoid, verify you’ve performed proper solenoid testing to confirm the issue.
- Check the solenoid coil for signs of corrosion or damage.
- Verify the electrical connections are secure and not loose.
- Inspect the solenoid valve’s diaphragm for blockages or debris.
Consult the Orbit Sprinkler Timer manual for specific solenoid replacement instructions.
Controller and Solenoid Issues
Several components in your Orbit sprinkler timer system rely on the controller and solenoid to function properly.
If you’re experiencing issues, start by reviewing your timer settings to certify they’re correct. Next, perform solenoid tests to identify any blockages or faulty wiring.
Check for proper water flow by inspecting the valve and piping for kinks or restrictions. You may need to adjust the solenoid’s plunger or replace it if damaged.
Verify the controller is sending the correct signals to the solenoid, and that the solenoid is responding accordingly. By methodically troubleshooting these components, you’ll be able to pinpoint and resolve the issue.
Wiring and Power Supply Checks
Five key wiring and power supply checks can help you identify the root cause of your Orbit sprinkler timer issues.
To start, inspect the wiring for any signs of damage or corrosion, which can cause loose connections or voltage loss.
Then, perform the following checks:
- Verify the sprinkler wire is fully inserted in the terminal and lightly tug on it to confirm a secure connection.
- Check the terminal screws for tightness to prevent voltage loss due to loose connections.
- Move the sprinkler wire to another terminal to isolate the issue and identify if it’s specific to one terminal or a general wiring problem.
- Use a voltmeter to check the voltage at the device, certifying it reads 24-30 volts AC.
Additional Tips and Reminders
When troubleshooting your Orbit sprinkler timer, remember to consult the user manual for specific guidance on wiring and terminal connections, as different models may have unique requirements.
Regular timer maintenance is vital to guarantee peak performance; clean the timer’s exterior and interior components regularly to prevent dirt buildup.
Additionally, check your water pressure, as high pressure can damage the timer or sprinkler system.
Consider the age of your sprinkler system, as older systems may require replacement or upgrading.
Frequently Asked Questions
Why Is My Orbit Sprinkler Timer Not Working?
When your timer doesn’t work, you’re likely dealing with a power cycle issue, depleted battery life, or wiring issues. Try power cycling the device, checking the battery, and inspecting the wiring connections to identify the root cause of the problem.
What Is the Fault on the Orbit Timer?
You’re stuck, wondering what’s causing the malfunction, and it’s frustrating. Check the timer display for errors, inspect for battery corrosion, and verify faulty wiring; these common issues often hide the root cause, and identifying them will help you pinpoint the exact fault on the timer.
How Do You Know if a Sprinkler Controller Is Bad?
You’ll know if a sprinkler controller is bad if it fails to turn on or off, or functions erratically, after power cycling, indicating faulty modules or wiring issues, which require immediate attention to prevent further damage.
Why Is My Sprinkler Timer Not Working Properly?
You’re wondering why your sprinkler timer isn’t working properly? Investigate if incorrect settings are the culprit, or if a recent power outage triggered the issue. Also, check if faulty batteries are to blame, as these common causes can disrupt proper function.
Conclusion
By following these systematic troubleshooting steps, you’ve isolated the issue and restored your Orbit sprinkler timer to proper function. You’ve checked the valve box, verified power and settings, performed voltage checks, and inspected valve and solenoid components. You’ve also examined wiring, certified proper water flow, and verified controller signals. With persistence and attention to detail, you’ve resolved the problem, and your sprinkler system is once again efficiently watering your lawn.
